| Quantity: | |
|---|---|
B500-B2000
SOAN
Product Description

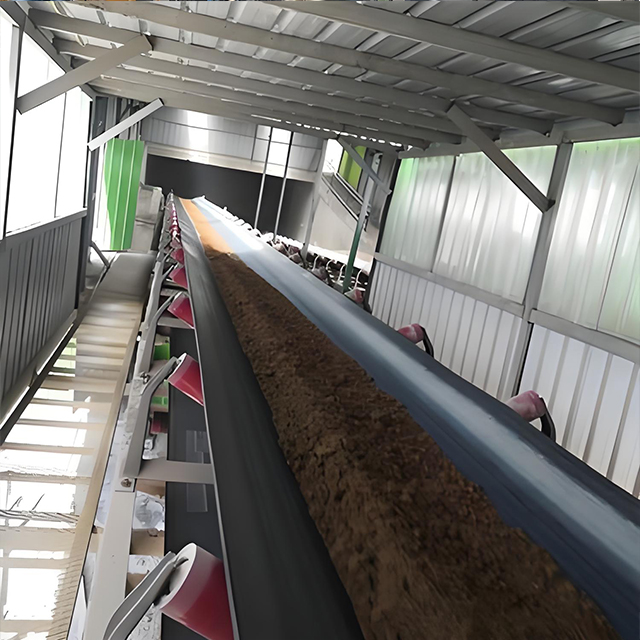

The long distance overland conveyor is a special type of belt conveyor that achieves long-distance and curved transportation. It can perform flat turns, as well as vertical convex and concave turns, forming a spatial curve. This is achieved by lifting the inner curve of the conveyor belt, adjusting the deflection angle of the idler, and using deep groove idler groups to generate an outward centrifugal thrust during operation to overcome the centripetal force of the conveyor caused by turning, ensuring the smooth operation of the belt during turns. By using a curved track, it can avoid obstacles or unfavorable terrain, and achieve the goal of simplying the system and saving investment by reducing or eliminating the need for intermediate transfer stations.

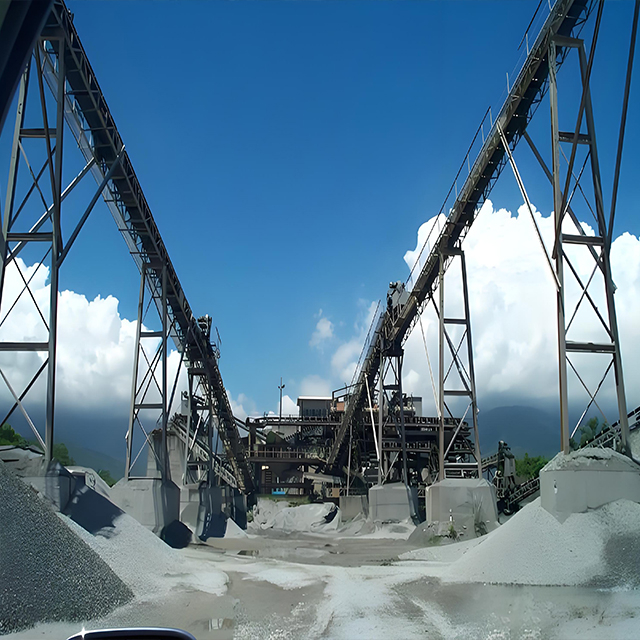

The belt conveyor with high belt speed,large handling capacity,long distance conveying is widely used in mining, metallurgy, port, cement, grain, chemical and other industries.
Parameter
Belt width | 500 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
Belt speed | Capacity (m³/h) | ||||||||||
0.8 | 69 | 127 | 198 | 324 | - | - | - | - | - | - | - |
1.0 | 87 | 159 | 248 | 405 | 593 | 825 | - | - | - | - | - |
1.25 | 108 | 198 | 310 | 507 | 742 | 1032 | - | - | - | - | - |
1.60 | 139 | 254 | 397 | 649 | 951 | 1321 | - | - | - | - | - |
2.00 | 174 | 318 | 496 | 811 | 1188 | 1652 | 2186 | 2795 | 3470 | - | - |
2.50 | 217 | 397 | 620 | 1014 | 1486 | 2065 | 2733 | 3494 | 4338 | - | - |
3.15 | - | - | 871 | 1278 | 1872 | 2602 | 3444 | 4403 | 5466 | 6843 | 8289 |
4.00 | - | - | - | 1622 | 2377 | 3304 | 4373 | 5591 | 6941 | 8690 | 10526 |
4.50 | - | - | - | - | 2674 | 3718 | 4920 | 6291 | 7808 | 9776 | 11842 |
5.00 | - | - | - | - | 2971 | 4130 | 5466 | 6989 | 8676 | 10863 | 13158 |
5.60 | - | - | - | - | - | - | 6122 | 7829 | 9717 | 12166 | 14737 |
6.50 | - | - | - | - | - | - | - | 9083 | 11277 | 14120 | 17104 |
Our factory
