Product Description

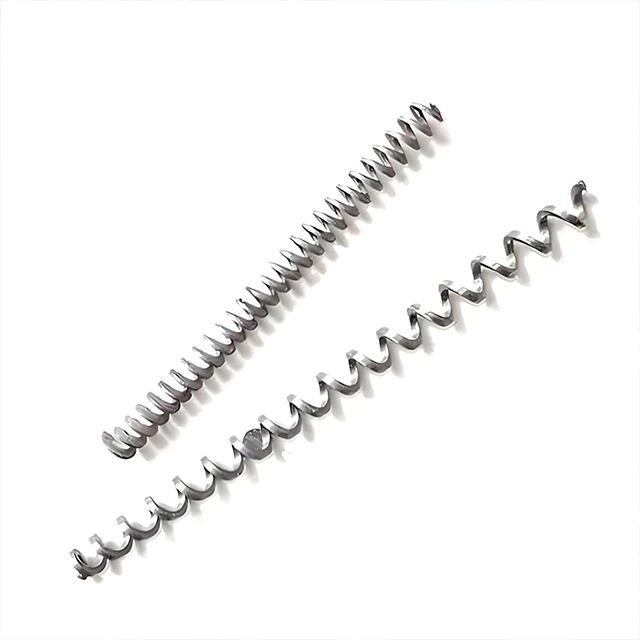

The specialized spiral conveyor for the food industry is a fully open cover design, allowing for a 360-degree unobstructed exposure of the material. It is matched with an high-pressure water gun for efficient cleaning. The driving system use a latch-type quick connection structure, ensuring stable torque transmission while enabling rapid disassembly. The drive end is connected via a latch link, and an axless support in the intermediate section and a sliding bearing for terminal positioning. The quick-release latch facilitates instant separation of the spiral blades from the shell, solving the issue of cleaning dead spots in transmission equipment. The disassembly and cleaning process is more than 80% faster compared to traditional equipment.
Parameter
Technical Parameters of Shaftless Screw Conveyors | ||||||
Model Type | Screw Blade Outer Diameter | Conveying Capacity | Power | Revolving Speed | Max. Length | Inclined |
Angle | ||||||
mm | m³/h | Kw | r/min | m | ° | |
LS160 | 160 | 1.0~1.5 | 2.2~3.0 | 15~30 | ≤12 | 0~30° |
LS200 | 200 | 1.5~2.5 | 3.0~4.0 | 15~30 | ≤12 | 0~30° |
LS260 | 260 | 2.5~5.0 | 4.0~5.5 | 15~30 | ≤15 | 0~30° |
LS320 | 320 | 5.0~8.0 | 5.5~7.5 | 15~30 | ≤15 | 0~30° |
LS360 | 360 | 7.0~10 | 7.5~11 | 15~30 | ≤20 | 0~30° |
LS420 | 420 | 10~20 | 7.5~11 | 15~30 | ≤25 | 0~30° |
LS500 | 500 | 20~30 | 11~15 | 15~30 | ≤30 | 0~30° |
